Multi Band Dipole

Multi Band Dipole - ZS6BKW/G5RV Optimized Multi Band HF Dipole Antenna Poly-Stealth
ZS6BKW/G5RV Optimized Multi Band HF Dipole Antenna

Multi Band Dipole

The ZS6BKW antenna is an optimized variant of the venerable old G5RV. Unlike the original G5RV, which requires an antenna tuner on all bands, the ZS6BKW / G5RV is capable of operating on 10, 12, 17, 20 & 40m bands, generally without a tuner, and with SWR readings usually at 1.5:1 or less. Using a tuner, 6, 15, 30 & 80m bands are attained with much higher efficiency than the original G5RV. Each Antenna is handmade to order with materials carefully tested & selected by Ni4L for quality & durability: Poly-Stealth 13 - machine crimped for permanent connection (92'), FLEXI 420-OHM LADDER LINE #16 AWG (40'), W2AU LL-TRANSULATOR, LADDER-LOC Center insulator, SS hardware & two small end insulators. Hanging the Z6SBKW/G5RV: The ZS6BKW/ G5RV is completely assembled and ready to hang. It requires about 92' of space and should be hung around 40' high or higher. It can be hung in a flat top or inverted V configuration. Unlike Windom and OCF Dipoles, the ZS6BKW / G5RV is a very forgiving antenna when it comes to nearby towers, trees, fences and other structures. IMPORTANT NOTE: As with all models of the G5RV antenna, the Optimized version also requires a minimum of 70 feet of 50-52 ohm coax to complete the matching network. Without this 70 foot of coax, the antenna will NOT function correctly....

  • Brand: Ni4L Antennas & Electronics
  • ASIN: B00L8JKLFG
  • Part No: ZS6BKW / G5RV
Multi Band Dipole - CHV-5X Rotatable Multi-Band Dipole
CHV-5X Rotatable Multi-Band

Multi Band Dipole

Comet 5-Band, 1/2 Wave Rotatable Dipole for 40/20/15/10/6 Meters Compact, lightweight, and easily assembled in either a horizontal, "V" shape or ground-plane configuration.  Each band tunes independently of the others.   Comet engineers have specifically designed this antenna for those that desire a milti-band dipole that can be rotated if needed, but don't have a lot of room to install it.   If you have antenna restrictions, neighbors that tend to complain about antennas, simply want to operate without drawing attention...or you want a lightweight multi-band antenna to use in portable or emergency situations, the CHV-5X is a great choice.   Max power:  40/20M 150W SSB        15/10/6M  220W SSB Horizontal length:  13 ft approx Weight:  5 lbs 14 oz approx Impedance:  50 Ohm Connector:  SO-239 Mounting mast req'd:  1"-2.5"   Typical 1.5:1 or less SWR bandwidth:   40M:  22kHz   20M:  36kHz   15M:  54kHz   10M:  140kHz     6M:  1.8MHz

  • Brand: Comet
  • ASIN: B00AR085D2
  • UPC: 701630965898
  • Part No: CHV-5X
Multi Band Dipole - MFJ-1778 G5RV Wire Antenna 80-10 Meters - Authorized Dealer
MFJ-1778 G5RV Wire Antenna 80-10 Meters - Authorized

Multi Band Dipole

MFJ-1778 - G5RV Wire Antenna - Multi-Band center-fed dipole antennas. These are multi-band, center-fed dipole antenna capable of 1,500 watts. Designed as 3/2 wavelength antennas for 14 MHz, they provide reasonable performance on many other bands. They cover all bands from 80-10 meters with a wide range antenna tuner. They are 102 ft. long and are designed to be used as an inverted vee or sloper to be more compact. Specifications: Assembled Wire Antenna: Yes Wire Antenna Type: Multi-band, non-resonant Antenna Power Rating: 1,500 Watts Wire Antenna Length: 102.00 ft. Antenna Tuner Required: Yes Feedline Connection Type: UHF female, SO-239 Minimum Recommended Feedpoint Height: 35.00 ft. Wire Gauge: 14-gauge Center Insulator Maximum Rope Size: 0.375 in. Wire Antenna Weight: 2.90 lbs.

  • Brand: MFJ
  • ASIN: B005OEA88Q
  • UPC: 702646178081
  • Part No: MFJ-1778
Multi Band Dipole - MFJ Enterprises Original MFJ-1778M G5RV Junior Wire Antenna 40-10 Meters, 52 Ft Long
MFJ Enterprises Original MFJ-1778M G5RV Junior Wire Antenna 40-10 Meters, 52 Ft

Multi Band Dipole

Multi-band center-fed dipole antenna capable of 1500 Watts. It consists of 52 feet flat-top fed with 17 feet of 450 Ohm matching section ending in an SO-239 coax connector.

  • Brand: MFJ
  • ASIN: B00B65ZFZ8
  • UPC: 702646178098
  • Part No: MFJ-1778M
Multi Band Dipole - 10KW W2DU 160/80/40 Meter Fan Multi-Band Antenna DIPOLE 1:1 BALUN
10KW W2DU 160/80/40 Meter Fan Multi-Band Antenna DIPOLE 1:1

Multi Band Dipole

YOU WILL RECEIVE ONE 160/80/40 METER FAN DIPOLE KIT WHICH INCLUDES THIS ANTENNA MEASURES OVER 260 FEET TO 275 FEET DEPENDING ON WHERE YOU TUNE IT. 1 @ W2DU 10 KILOWATT 1:1 BALUN 6 @ BLACK END INSULATORS 2 @ 10-12 GAUGE BUTT CONNECTORS, 12 @ 1/8 WIRE CRIMP SLEEVES FOR WIRE 6 @ 5/32 WIRE CRIMP SLEEVES FOR ROPE 1 @ 2x3 INCHES OF COAX SEAL 500' SPOOL 14 GAUGE THHN BLACK STRANDED COPPER WIRE TO BUILD YOUR ANTENNA (40/80/160 FAN Half Wave Dipole) 200 FEET OF QUALITY AMERICAN MADE 5/32" BLACK DACRON ROPE 4 @ 5 1/2 INCH @ 1/2 INCH PVC SPACERS (OPTIONAL DEPENDING ON YOUR LAY OUT)

  • Brand: Dipoles USA
  • ASIN: B07Q5QD9D1
  • Part No: W2DU1608040BLK200
Multi Band Dipole - Lava HD8008 Omnidirectional Outdoor TV Antenna HD TV 4K 360 Degree OmniPro HD-8008 + Installation Kit & TV Antenna Jpole
Lava HD8008 Omnidirectional Outdoor TV Antenna HD TV 4K 360 Degree OmniPro HD-8008 + Installation Kit & TV Antenna

Multi Band Dipole

Product featuresSold by Digihitech Exclusive. Package includes, 1x HD8008 Antenna, 1x installation Kit, 1x Antenna Mounting poleOmnidirectional characteristics, receiving reception from multiple directions without needing adjustments. Built-in dipole for excellent UHF and VHF band signal reception. DVB-T; ISDB-T; DMB-T/H; ATSCIdeal Distance 40-80 miles (reaches up to 130 miles) This is long range antenna best use for outdoor, so if you live very close to TV tower, you need to get a Indoor Antenna or the signal will be overshoot.Note: make sure to scan channels after install the antenna, or it may show 0 Channel. Antenna cable can not be longer than 50 ft, or it may receive 0 or less than it should be.Product descriptionLAVA HD8008 Omnidirectional Antenna is specially designed omnidirectional antenna that will receive both the VHF and the UHF TV signals without rotating. A latest concept for digital outdoor analog and terrestrial HDTV broadcasting reception. The antenna is one of the best solutions for both home and portable digital TV reception. Complete accessories are included for either wall or pole mounting. RV supported. Free Installation kit includes 1x 40ft Coax cable1x 4-way splitter (to watch on more TVs)15x cable clips.Note:Please understand that this is a simulation an...

  • Brand: LAVA
  • ASIN: B075KZLTZ9
  • UPC: 840449110874
  • Part No: LAVATV4KANTE
Multi Band Dipole - Comet Original CHA-250B HF/50 MHz (3.5~57) Broadband Ground-Plane Vertical Base Antenna
Comet Original CHA-250B HF/50 MHz (3.5~57) Broadband Ground-Plane Vertical Base

Multi Band Dipole

Multi Band HF Vertical Amateur Ham Radio Antenna For 6 Meter Through 80 Meters HF,Requires No Radials, No Tuning or Adjustments!. SWR of 1.61 or Lower on All Bands!Fits Optional Mast Pipes Between 1-2 Inch Diameter. Accepts Any Optional Cable with a PL-259 Connector.Handles Up To 250W PEP SSB Power.

  • Brand: Comet
  • ASIN: B00193FHH8
  • UPC: 702646177787
  • Part No: CHA-250B
Multi Band Dipole - MFJ Wire Antenna, 160m-10m, G5RV dipole and Ham Guides TM Pocket Reference Card Bundle
MFJ Wire Antenna, 160m-10m, G5RV dipole and Ham Guides TM Pocket Reference Card

Multi Band Dipole

G5RV HF Antenna Covers all bands, 160-10 Meters with antenna tuner. 102 feet long, shorter than 80 Meter dipole. Use as inverted vee or sloper to be more compact. Use on 160 Meters as Marconi with tuner and ground. Handles full legal limit power. Add coax feedline -- get on the air! The G5RV antenna is a multi-band center-fed dipole antenna capable of 1500 Watts. It was originally designed to operate as a 3/2 wavelength center fed antenna for 14 MHz, but amateurs soon discovered it would offer reasonable performance on many other bands. The MFJ-1778 (G5RV) consists of a 102 foot flat top fed with a 32.5 foot 450 ohm matching section ending in an SO-239 coaxial connector. The 450 ohm balanced transmission line serves as a 1:1 transmission line transformer on 14 MHz. The SWR is approximately 2:1 at 14 MHz. The same balanced line section acts like a transmission line impedance matching section on the other HF bands. This antenna generally requires the use of a suitable matching network (antenna tuner) since the SWR of the G5RV is almost certainly not 1:1 on any band. The use of a tuner will guarantee maximum performance from solid state exciters. The G5RV is a balanced antenna that is fed by an unbalanced coaxial line. This feed system causes unwanted parallel RF currents to appear...

  • Brand: MFJ
  • ASIN: B00WOLPYCW
  • UPC: 701630980549
  • Part No: MFJ-1778
Multi Band Dipole - LAVA HD8008 360 Degree Omnidirectional HD TV 4K Omnidirectional TV Antenna OmniPro HD8008 + FiveStar Antenna Installation Kit
LAVA HD8008 360 Degree Omnidirectional HD TV 4K Omnidirectional TV Antenna OmniPro HD8008 + FiveStar Antenna Installation

Multi Band Dipole

LAVA HD8008 Omnidirectional Antenna This is a specially designed omnidirectional antenna, a new concept for digital outdoor analog and terrestrial HDTV broadcasting reception. The antenna is one of the best solutions for both home and portable digital TV reception. Complete accessories are included for either wall or pole mounting. Free Installtion kit includes, including 1x 40ft cable, 1x 8-3/4 inch flat cable, 1x 4-way splitter (to watch on more TVs), 15x cable clips.

  • Brand: LAVA
  • ASIN: B0773XGL8W
  • UPC: 840449110980
  • Part No: HD-8008KIT
Multi Band Dipole - Hustler 4-BTV HF (10/15/20/40) Vertical Amateur Ham Radio Base Antenna
Hustler 4-BTV HF (10/15/20/40) Vertical Amateur Ham Radio Base

Multi Band Dipole

The Hustler 4-BTV is a four-band trap vertical antenna providing an omni directional pattern. The 4-BTV is designed as a self-supporting vertical to provide optimum operation in the 10, 15, 20 and 40 meter bands. It can also be adapted to operate in the 75 meter band. This antenna is designed for installations with restricted space. The Hustler 4-BTVs provide an electrical selection of bands through the use of optimum Q traps, which are individually and precisely tuned and internally sealed at the factory. The traps are parallel-tuned circuits, which provide efficient isolation between the vertical sections, permitting multi-band operation. Broadband operation, with low SWR over the entire ham band, is possible in a proper installation. The antennas are designed to provide for optimum performance from both an electrical and a mechanical standpoint. Mechanically, these antennas boast a heavy duty base and heavy duty aluminum tubing. The mechanical assembly is accomplished with all stainless steel hardware. Specifications: ** HF Vertical Antenna Type: Multi-band, resonant ** Vertical Antenna Height: 21.50 ft. ** Antenna Wind Survival: 55 mph ** Antenna Power Rating: 1,500 W ** Maximum Antenna Tubing Diameter: 1.250 in. ** Vertical Antenna Mount Type: Non-tilt bracket ** Antenna Mou...

  • Brand: Hustler
  • ASIN: B01AC97236
  • UPC: 603100020093
  • Part No: 4-BTV

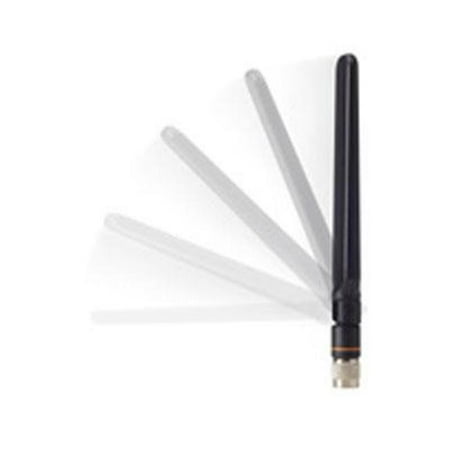

Multi Band Dipole - Cisco Aironet Dual-Band Dipole Antenna - antenna
Cisco Aironet Dual-Band Dipole Antenna -

Multi Band Dipole

  • Model: Dual-Band Dipole Antenna
  • Color: Multicolor
Multi Band Dipole - Cisco Aironet Dual-Band Dipole Antenna - antenna
Cisco Aironet Dual-Band Dipole Antenna -

Multi Band Dipole

  • Model: AIR-ANT2524DG-R
  • Color: Multicolor
Multi Band Dipole - Dual Band 4 dBi Dipole Antenna
Dual Band 4 dBi Dipole

Multi Band Dipole

  • Model: DO634336
  • Color: Multicolor

Building a Multi-Band Dipole

Multi Band Dipole

I built a multiband dipole that will work 40, 20, 17, and 10 meters for ham radio. An easy project I was able to tackle in one day. Calculations for the wire lengths can be found easily online. I used a program called N2IMF antenna I downloaded from hamuniverse.com that will assist in dipole w...

  • Likes: 289
  • View count: 55060
  • Dislikes: 22
  • Comments:
Tags: ham,radio,amateur radio,ham radio,dipole,fan dipole,multiband dipole,communication,communications,diy,build,project,radio project
