Compare Prices

Twisted Pair Video Transceiver

Twisted Pair Video Transceiver - ANHAN Twisted Pair Video Balun Passive Balun Transceiver, UTP bnc to rj45 balun Converter Transmitter with Power Connector for CCTV Security/Surveillance Camera Systems 1 Pair
ANHAN Twisted Pair Video Balun Passive Balun Transceiver, UTP bnc to rj45 balun Converter Transmitter with Power Connector for CCTV Security/Surveillance Camera Systems 1

Twisted Pair Video Transceiver

Festure: 1.NTSC,PAL,AND SECAM video formats 2. 60db crosstalk and noise immunity 3. Compact size and easy installation 4. Built-in transient suppression protection 5. Innovative combinabie design Technical Specifications:  1.Frequency response:DC-60MHZ 2.Attenuation : 0.5dB typ 3.CMRR (Common Mode Rejection Ratio):60DB 4.Surge protection : 4KV, ESD:8KV 5.Impedance: BNC-75Ohms, RJ45-100Ohms 6.Working temperature:-10~70 Census Degree 7.Storage temperature:-30~70 Census Degree 8.Humidity:0-95% 9. 14cm cable 10.Material:ABS Plastic Package:1 Pair HD CCTV BNC Video Balun Transceiver with power connector

  • Brand: ANHAN
  • ASIN: B077TGMDQD
  • UPC: 661708741277
  • Part No: CAL029
Twisted Pair Video Transceiver - NVT Twisted-Pair Video Transceiver for CCTV NV-214A-M
NVT Twisted-Pair Video Transceiver for CCTV

Twisted Pair Video Transceiver

The NVT Model NV-214A-M Video Transceiver is a passive (non-amplified) device that allows the transmission of real-time monochrome or color video over Unshielded Twisted-Pair (UTP) telephone wire. Baseband (composite) signals of any type are supported. This product is an improvement over NVTs popular NV-213A video transceiver. The passive NV-214A-M has a 9" mini-coax mini lead which allows in-camera enclosure mounting in most dome cameras and a greater number of mounting options in general at both ends of the system. It is capable of delivering a fully equalized signal to the DVR when used with any Active NVT Receiver, yet is compatible with all of NVTs passive products for applications under 750ft (225m). The NV-214A-M Video Transceiver also incorporates improved transient protection that eliminates the need for a ground screw. The unparalleled interference rejection and low emissions of the NV-214A-M allow video signals to co-exist in the same wire bundle as telephone, datacom, or low-voltage power circuits. This allows the use of a shared or existing cable plant. Also known as -NVT NV214AM NV-214A-M Video Transceiver

  • Brand: NETWORK VIDEO TECHNOLOGIES NVT
  • ASIN: B00KLCDWO8
  • UPC: 735890002147
  • Part No: NV-214A-M
Twisted Pair Video Transceiver - VIMVIP [Upgraded] 4 Pairs Split Joint Mini CCTV BNC HD-CVI/TVI/AHD Passive Video Balun Transceiver
VIMVIP [Upgraded] 4 Pairs Split Joint Mini CCTV BNC HD-CVI/TVI/AHD Passive Video Balun

Twisted Pair Video Transceiver

VIMVIP [Upgraded] 4 Pairs Mini CCTV BNC HD-CVI/TVI/AHD Passive Video Balun Transceiver used Innovative Split Jointed Design and Screw Free UTP Terminal Connecter, the newest generation video balun for you! Features: Compatible with all HD-CVI, HD-TVI, HD-AHD Up to 450m for 720P CVI Cameras Up to 250m for 1080P CVI Cameras Up to 250m for 720P/1080p TVI Cameras Up to 350m for 720P AHD camera NTSC, PAL, and SECAM video formats No power required 60dB cross talk and noise immunity. Compact size and easy installation Built-in transient suppression protection Innovative combinable design Technical Specifications Frequency response: DC to 60Mhz Attenuation: 0.5dB type CMRR: 60dB Surge protection:4KV ESD:8KV Connectors: Male BNC and " Press-Fit" terminal blocks Impedance: BNC: 75ohms Terminal: 100ohms Working Temperature: -10°C to +70°C Storage Temperature: -30°C to + 70°C Humidity : 0 to 95% Dimension: 39mm * 17mm * 19mm (excluding connectors) Material: ABS Plastic Package Include: 1x 4 Pair VIMVIP [Upgraded] Mini HD CCTV Via Twisted HD-CVI/TVI/AHD Passive Video Balun

  • Brand: VIMVIP
  • ASIN: B076H3JWS5
  • UPC: 614134160891
  • Part No: VB-4P
Twisted Pair Video Transceiver - ANHAN Passive Video Audio Balun with Power utp bnc to rj45 Transmitter Transceiver for CCTV System Shielded Twisted Pair 1 Pair
ANHAN Passive Video Audio Balun with Power utp bnc to rj45 Transmitter Transceiver for CCTV System Shielded Twisted Pair 1

Twisted Pair Video Transceiver

Festure: 1.NTSC,PAL,AND SECAM video formats 2. 60db crosstalk and noise immunity 3. Compact size and easy installation 4. Built-in transient suppression protection 5. Innovative combinabie design Technical Specifications:  1.Frequency response:DC-60MHZ 2.Attenuation : 0.5dB typ 3.CMRR (Common Mode Rejection Ratio):60DB 4.Surge protection : 4KV, ESD:8KV 5.Impedance: BNC-75Ohms, RJ45-100Ohms 6.Working temperature:-10~70 Census Degree 7.Storage temperature:-30~70 Census Degree 8.Humidity:0-95% 9.Dimension:45*25*21mm with 14cm cable 10.Material:ABS Plastic Package:1 Pair HD CCTV BNC Video Balun Transceiver with power connector

  • Brand: ANHAN
  • ASIN: B077TJ6DFF
  • UPC: 661708741284
  • Part No: CAL030
Twisted Pair Video Transceiver - Video Balun,BNC Passive Audio Power Transmitter/Transceiver Connectors Adapter with RJ45 Terminal Via CAT5/5E/6 Twisted-Pair Cable for HD-CVI-TVI/AHD 720P-1080P Video Surveillance Systems 4Pairs/8PCS
Video Balun,BNC Passive Audio Power Transmitter/Transceiver Connectors Adapter with RJ45 Terminal Via CAT5/5E/6 Twisted-Pair Cable for HD-CVI-TVI/AHD 720P-1080P Video Surveillance Systems

Twisted Pair Video Transceiver

★Easy installation, using the standard UTP cable system.Support all video device, such as camera, monitor, DVR card and recorder etc. ★Image with high quality in long distance. Built - in transient protection.Excellent anti-jamming ability. ★Real-time monochrome or color transmission PAL, NTSC, SECAM and other standard baseband video signal. ★Passive UTP video transmission equipment, and can be used for sending and receiving, without providing power. Specifications: Maximum Output: 1.1Vp-p Loss Ratio: >2dB Interference: >40dB BNC Resistance: 75ohm UTP Resistance: 100ohm Package List: 8 * Video Balun Transceivers ★12-MONTHS WARRANTY: Offers you a 100% money back satisfaction guarantee within 1 year!Respond within 24 hours, If there are any question.Without worry about.

  • Color: 1
  • Brand: LLNRC
  • ASIN: B07QF6RXH2
  • UPC: 741416074482
  • Part No: LLNRC-037
Twisted Pair Video Transceiver - 10 Pairs HD-CVI/TVI/AHD Passive Video Balun with Power Connector and RJ45 CAT5 Data Transmitter BNC Twisted Pair
10 Pairs HD-CVI/TVI/AHD Passive Video Balun with Power Connector and RJ45 CAT5 Data Transmitter BNC Twisted

Twisted Pair Video Transceiver

This Video Transceiver with Power is a passive (non-amplified) device that allows the transmission of real-time monochrome or color video over Unshielded Twisted-Pair(UTP)telephone wire. Baseband (composite) signals of any type are supported. This video transceiver allows transmission of CCTV video and low voltage power over UTP cable.Power and Video are routed via UTP and RJ45 connections. Its unparalleled interference rejection and low emissions allows video signals to co-exist in the same wire bundle as telephone, datacom, or low-voltage power circuits. This allows the use of a shared or existing cable plant. Features: * Compatible with all HD-CVI,HD-TVI,HD-AHD. * Video up to 450m for 720P CVI cameras. * Video up to 250m for 1080P CVI cameras. * Video up to 250m for 720P/1080P TVI cameras. * Video up to 320m for 720P AHD cameras. * NTSC,PAL,AND SECAM video formats. * 60db crosstalk and noise immunity. * Compact size and easy installation. * Built-in transient suppression protection. * Innovative combinabie design. Technical Specifications: 1.Frequency response:DC-60MHZ; 2.Attenuation:0.5dB typ; 3.CMRR(Common Mode Rejection Ratio):60DB; 4.Surge protection:4KV, ESD:8KV; 5.Impedance: BNC-75Ohms, RJ45-100Ohms; 6.Working temperature:-10~70 Census Degree; 7.Storage temperature:-30...

  • Brand: exgoofit
  • ASIN: B076WXPTH1
  • UPC: 795042074989
  • Part No: PN1
Twisted Pair Video Transceiver - Video Balun Connectors Passive HD CVI/AHD/TVI Signal Transceivers 720P/1080P/2MP Single Channel for BNC Male Cable via CAT5/5E/6 Twisted Pair Transmitter CCTV Security Camera System 20 Pairs
Video Balun Connectors Passive HD CVI/AHD/TVI Signal Transceivers 720P/1080P/2MP Single Channel for BNC Male Cable via CAT5/5E/6 Twisted Pair Transmitter CCTV Security Camera System 20

Twisted Pair Video Transceiver

Technical Specifications Video Balun Compatible with HD-CVI / TVI / AHD/ CVBS Signal Transmission Signal: 720P/960P/1080PMaximum Support Pixel : 2 Million Pixels Cable: CAT 5/5e/6 Transmission distance: TVI 100 meters (328ft), AHD 200 meters (656ft), CVBS 300 meters (984ft) Frequency response: DC to 60Mhz Attenuation: 0.5dB type CMRR: 60dB Surge protection:4KV ESD:8KV Connectors: Male BNC Impedance: BNC: 75ohms Terminal: 100ohms Working Temperature: -10°C to +70°C Storage Temperature: -30°C to + 70°C Humidity : 0 to 95% Dimension: 14.5*1.5*1.5cm Material: PVC + Copper + Alloy Package Include: 40 x Video Baluns

  • Color: Video Balun T20/40pcs
  • Brand: eoere
  • ASIN: B077X6JBSP
  • UPC: 712962107115
  • Part No: IPCP-03-T20
Twisted Pair Video Transceiver - 20 Pairs Passive Video Balun RJ45 Transceiver Transmitter HD-CVI/TVI/AHD/CVBS with Built in Transient Suppression Protection for 1080P/2MP CCTV Security DVR Surveillance Camera System
20 Pairs Passive Video Balun RJ45 Transceiver Transmitter HD-CVI/TVI/AHD/CVBS with Built in Transient Suppression Protection for 1080P/2MP CCTV Security DVR Surveillance Camera

Twisted Pair Video Transceiver

Features: * Compatible with all HD-CVI,HD-TVI,HD-AHD. * Video up to 450m for 720P CVI cameras. * Video up to 250m for 1080P CVI cameras. * Video up to 250m for 720P/1080P TVI cameras. * Video up to 320m for 720P AHD cameras. * For NTSC,PAL,AND SECAM video formats. * Compact size and easy installation. * Built-in transient suppression protection. * Innovative design. Description: Specifications Frequency response:DC-8MHZ Impedance: BNC:75Ω; RJ45:100Ω Working temperature: -10℃ to + 70℃ Storage temperature: -30℃ to + 70℃ Humidity: 0 to 95% Dimension: 55x30x25 with 12cm cable Power-distance chart Using PVD prodcuts,cameras can be powered at extended distances,please refer to the chart below for more information. Package Include:20 Pairs HD CCTV CVI/TVI/AHD Video Balun

  • Brand: YaeCCC
  • ASIN: B074FWXMGJ
  • UPC: 602989769581
  • Part No: 43237-2
Twisted Pair Video Transceiver - ANHAN Video Balun Passive UTP Transmitter Twisted Pair Video transceiver 2 Pairs
ANHAN Video Balun Passive UTP Transmitter Twisted Pair Video transceiver 2

Twisted Pair Video Transceiver

Video Compatible Format:AHD / HDCVI / HDTVI Resolution:720P/1080P Impedance: Male BNC 75 ohms , UTP Cable 100 ohms Wire type Network Wiring:One Unshield Twisted Pair(for each video signal)24-16AWG(0.5-1.31mm) Category Type:Cat5e/6 suggested Impedance:100±20ohms DC Loop Resistance:52 ohms per 1000ft(18 ohms per 100m) DC Loop Resistance:Different Capacitance Power:No External power required Protection Video Input:2KV(common mode),10/700us IEC6100-4-5/1995(GB/T 1726,5-1999) Video Output:2KV(common mode),10/700us IEC6100-4-5/1995(GB/T 1726,5-1999) Transmission signal: 1 channel  Coaxial video connector: BNC Male  Twisted-pair video connector: push-terminal  Mechanical Housing ABS engineering plastic Body Color:Black Gross weight:60g/pair Package:2 Pairs HD Passive BNC Video Balun Transciever

  • Color: Black
  • Brand: ANHAN
  • ASIN: B077T43JB7
  • UPC: 661708741147
  • Part No: CAL016
Twisted Pair Video Transceiver - Video Balun,Passive BNC Audio Power Transmitter/Transceiver Connectors Adapter with RJ45 Terminal Via CAT5/5E/6 Twisted-Pair Cable for HD-CVI-TVI/AHD 720P-1080P CCTV Security Camera System 4Pairs/8PCS
Video Balun,Passive BNC Audio Power Transmitter/Transceiver Connectors Adapter with RJ45 Terminal Via CAT5/5E/6 Twisted-Pair Cable for HD-CVI-TVI/AHD 720P-1080P CCTV Security Camera System

Twisted Pair Video Transceiver

★Easy installation, using the standard UTP cable system.Support all video device, such as camera, monitor, DVR card and recorder etc. ★Image with high quality in long distance. Built - in transient protection.Excellent anti-jamming ability. ★Real-time monochrome or color transmission PAL, NTSC, SECAM and other standard baseband video signal. ★Passive UTP video transmission equipment, and can be used for sending and receiving, without providing power. Specifications: Maximum Output: 1.1Vp-p Loss Ratio: >2dB Interference: >40dB BNC Resistance: 75ohm UTP Resistance: 100ohm Package List: 8 * Video Balun Transceivers ★12-MONTHS WARRANTY: Offers you a 100% money back satisfaction guarantee within 1 year!Respond within 24 hours, If there are any question.Without worry about.

  • Color: 5
  • Brand: LLNRC
  • ASIN: B073W7PHDV
  • UPC: 642940016217
  • Part No: LLNRC-036
Twisted Pair Video Transceiver - 10 Pairs HD Audio Video Power Balun Transmitter BNC DC RJ45 Adapter Transceiver
10 Pairs HD Audio Video Power Balun Transmitter BNC DC RJ45 Adapter

Twisted Pair Video Transceiver

  • Color: BlackGray and Black and Silver Tone
  • Size: others
Twisted Pair Video Transceiver - CCTV Video Balun Anti Thunder Twisted Passive Video Transceiver BNC CCTV Accessories 1pair
CCTV Video Balun Anti Thunder Twisted Passive Video Transceiver BNC CCTV Accessories

Twisted Pair Video Transceiver

  • Color: 1pairOther
Twisted Pair Video Transceiver - DVR Camera CCTV UTP BNC Cat5 Video Balun Twisted Passive Transceivers Cable Pair
DVR Camera CCTV UTP BNC Cat5 Video Balun Twisted Passive Transceivers Cable

Twisted Pair Video Transceiver

  • Color: BlackBlack and Green and Silver Tone
  • Size: 16cm / 6.3"
Twisted Pair Video Transceiver - Kentek 15 Feet FT Slim Super VGA SVGA HD15 15 pin video with 3.5mm AUX audio slim cable cord male to male M/M mini-coax twisted pairs molded black TV PC MAC Monitor
Kentek 15 Feet FT Slim Super VGA SVGA HD15 15 pin video with 3.5mm AUX audio slim cable cord male to male M/M mini-coax twisted pairs molded black TV PC

Twisted Pair Video Transceiver

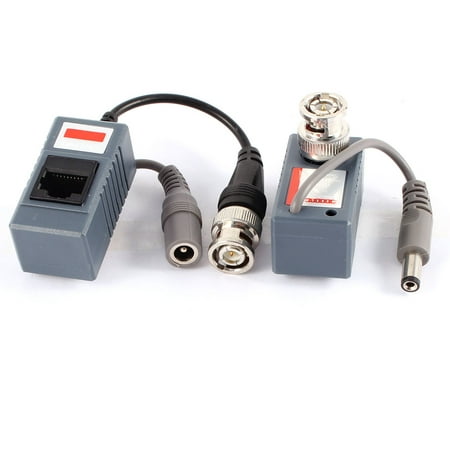

Twisted Pair Video Transceiver - Unique Bargains Pair CCTV Camera DC 2.1x5.5mm RJ45 BNC Audio Video Power Balun Transceiver
Unique Bargains Pair CCTV Camera DC 2.1x5.5mm RJ45 BNC Audio Video Power Balun

Twisted Pair Video Transceiver

  • Color: othersOther
  • Size: others

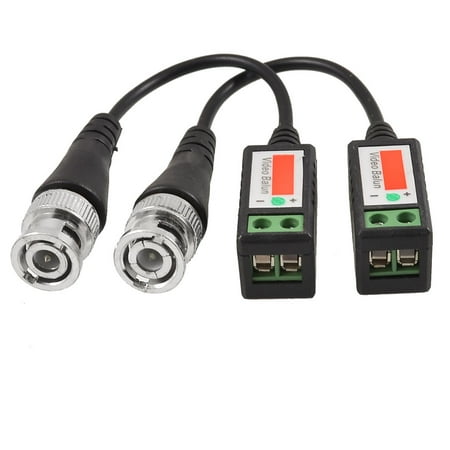

Twisted Pair Video Transceiver - Unique Bargains 1 Channel CCTV Via Twisted Pairs UTP Passive Video Balun Transceiver Black
Unique Bargains 1 Channel CCTV Via Twisted Pairs UTP Passive Video Balun Transceiver

Twisted Pair Video Transceiver

  • Color: othersOther
  • Size: others

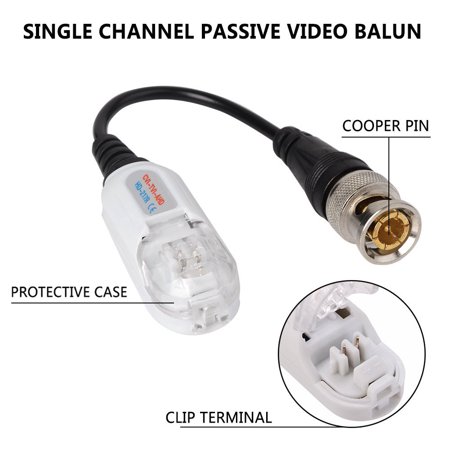

Twisted Pair Video Transceiver - 1 Pair 1-Channel Passive Video Balun Transceiver CCTV Camera DVR UTP CAT5 Cables
1 Pair 1-Channel Passive Video Balun Transceiver CCTV Camera DVR UTP CAT5

Twisted Pair Video Transceiver

  • Model: VIDEO_BALUN
  • Color: White

How to connect 4 channel BNC video balun for CCTV Camera and DVR

Twisted Pair Video Transceiver

This video shows how to Install CCTV Camera to a 4 channel video balun. Using a Video Balun saves Wiring cost. To know more about the prouducts, Log on to http://mdrelectronics.com/index.asp MX Video Balun MX CCTV 4 channel twisted transreceiver video balun allows UTP wire to be run up to 100 M...

  • Likes: 140
  • View count: 84513
  • Dislikes: 51
  • Comments:
